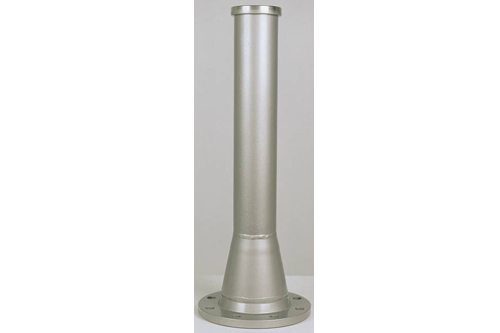

Hollow jet nozzle 100

Order no.: 50973
Dimensions: 285Ø x 750H (mm)

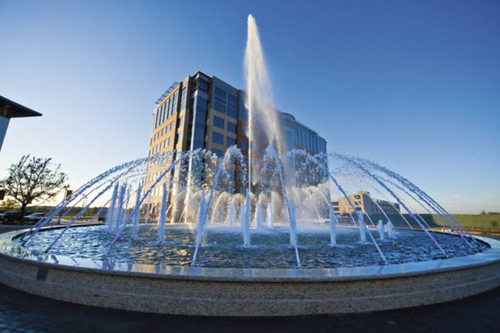

Imposing fountains up to 80 metres in height are shot high into the sky by OASE Hollow Jet nozzles. The special nozzles for impressive fountain heights work independently of the water level, and with flow straightener. Thanks to these features and the precise manufactoring of the ring slot of the nozzle, a stable fountain jet is ensured at all times.
In comparison to full jet nozzles, the sophisticated design of the Hollow Jet nozzle allows for a significant reduction of water demand (also referred to as volume flow).

Product characteristics at a glance
• For fountain heights of up to 80 m
• Wind stable high jet
• Water level independent
• Significantly reduced water demand compared to full-jet nozzles
• With flow director

Warranty: 2 years

Specifications

Order no.: 50973
Dimensions: 285Ø x 750H (mm)
Hollow Jet: 100mm
Water film thickness: 4.0mm
Fountain height: 20-50 m
Material: Stainless steel 1.4571 (AISI 316Ti)
Weight: 33.0 kg


Download Documents

Brochure: Hollow jet nozzle 100
