Water sphere 900/37 E

Order no.: 50894
Dimensions: 900Ø x 1800H(mm)

SKU: 50894 Category: Tags: ,

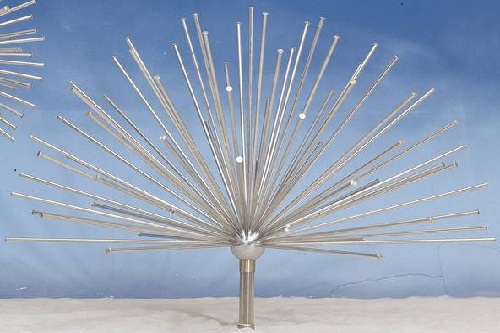

The artistic water pattern that is generated by the sphere effect nozzles requires a lot of space in order to unfold its enchanting effect. It lends any location a very special attractive force, even from a distance.

The fountain attachments are primarily made of stainless steel which makes them attractive sculptures even if they are not spraying water.

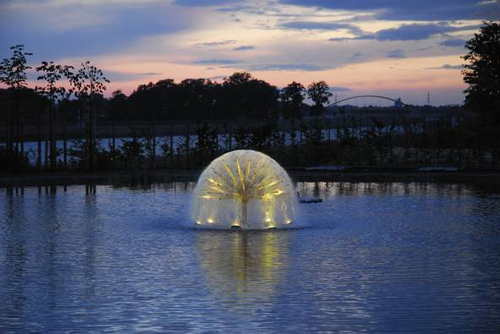

However, their special flair unfolds once the fine water veil escaping from the uniformly arranged nozzles converges to form a gentle sphere.

Depending on size the spheres consist of a different number of nozzles. Operation of the spheres and hemispheres is even possible in strong wind in spite of the relatively fine water veil.

Product characteristics at a glance
• Sculptural, amazing water pattern
• Decorative stainless steel sculpture
• Extensively wind stable
• Water level independent

Warranty: 2 years

Specifications

Order no.: 50894
Dimensions: 900Ø x 1800H(mm)
zd: 37 pieces
DWB: 370 l/min
DDB: 1.0 bar
MBD: 2000 mm
DD: 1 x DN 65 mm
d1: 900 mm
d2: 76 mm
d3: 475 mm
d4: 12 mm
h1: 100 mm
h2: 300 mm
h3: 1350 mm
h4: 1800 mm
x1: 430 mm
x2: 123 mm
Material: Tombac / stainless steel 1.4301 (AISI 304)
Weight: 32 kg


Download Documents

Brochure: Water sphere 900/37 E
