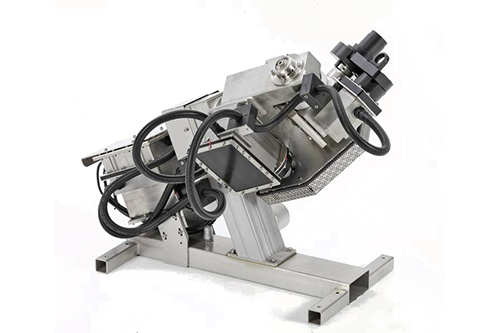

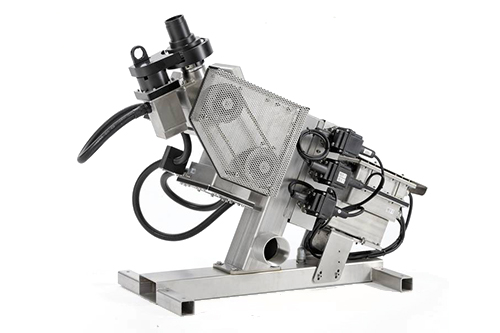

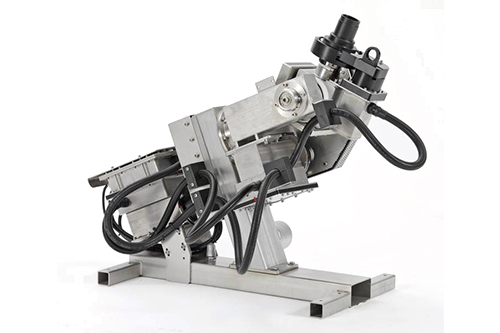

The multidimensional drive with its endless rotating axis and two swivel drives creates a complete new and unforgettable water pattern.The MDD in combination with the different nozzle patterns Fan Jet 15-8 (53047), Finger Nozzle 7-15 E (51110) and the overlapping movements caused by the endless rotation with a swivelling range of max. 180° on the y-axis and 200° on the x-axis result in innumerable impressive effects.
The Multi Directional Drive II 3D, which is suitable for fresh water, pool water and sea water application, has a waterproof 24 V DC voltage plug connection and DMX data plug connection and is DMX/RDM- capable
Product characteristics at a glance
• Multidimensional drive, suitable for different nozzle patterns ((Fan Jet 10-20-6 S (50524), Finger Nozzle 7-15 E (51110))
• Pivoting range up to 200°/3 sec. on the x-axis and 140° on the y-axis, z-axis 360° endless rotation in both directions, individual controllable, 850°/1 sec (2.3 rotation per sec.)
• Underwater parking position possible
• 1 ½” thread nozzle, 2 ½” thread water
• Robust stainless steel construction
• Suitable for operation in fresh water, pool water and sea water
• Energy efficient 24 V/DC motor
• DMX/RDM capable
• Controllable by OASE DMX-RDM controller (WECS II)
Warranty: 1 year
