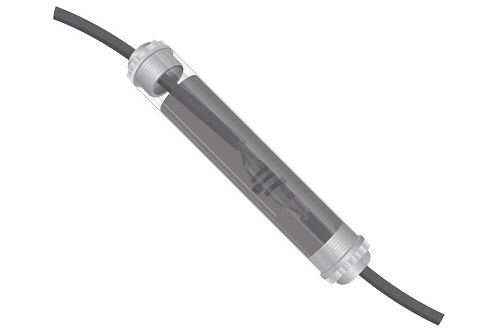

Power splice 20

Order no.: 57648 Dimensions: 26Dmm x 150Hmm

Underwater cable connector (1 to 1) for different cable diameter from 7 to 10 millimeters, wire diameters from 0.2 mm ² to 2.6 mm²

Scope of Delivery
• 1 – Potting material 2k
• 2 – Sandpaper
• 3 – Pair of gloves
• 4 – Crimp connector 0.2 mm² – 0.5 mm²
• 5 – Crimp connector 0.6 mm² – 1.0 mm²
• 6 – Crimp connector 1.1 mm² – 2.6 mm²
• 7 – Cable tie
• 8 – Pipe with grommet Tools needed on site
• Side cutter
• Crimp tool
• Wire stripper
• Cutter knife

Warranty: 1 year

Specifications

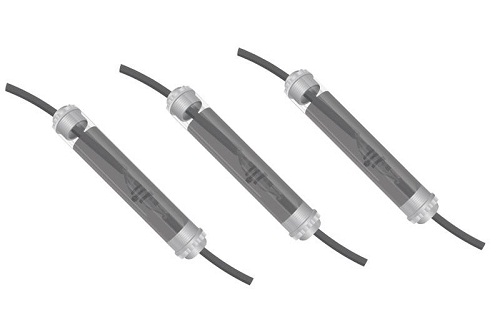

Order no.: 57648 Dimensions: 26Dmm x 150Hmm Power supply for:  [V] DMX-cable,hybrid cable, 24V DC, 12V AC, 230V , 400V protection class: IP 68 Suitable for cable diameter: 7 – 10 mm Material: PET Weight: 0.50 kg Packaging unit: 3


Download Documents

Brochure: Power splice 20
