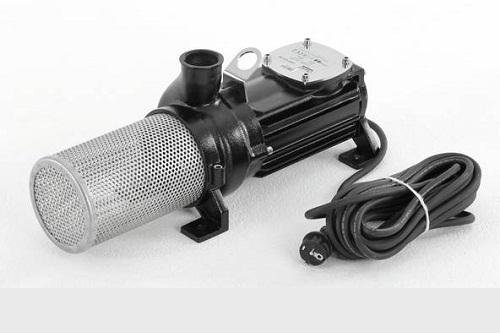

USP H 673 D

Order no.: 56506
Dimensions: 679Lx240Wx310H(mm)

These pumps are true universal talents: Set up underwater they perform their work as submersible motor driven pumps. They work just as reliably if they are set up in a separate pump chamber.

The robust wet running canned motors have static seals. In rushing water poses no problem for these pumps because they can be submersed.In addition thanks to the high-quality materials, such as special ceramics, stainless steel, and tombac, they are durable and offer an extremely long service life.

Product characteristics at a glance
• Suitable for wet and dry installations
• Robust wet running canned motor
• Wear free static seals
• Bearings and motor shaft are made of special ceramics
• Shaft, can and pump impeller are made of stainless steel
• Housing made of corrosion resistant tombac alloy

Warranty: 1 year

Specifications

Order no.: 56506
Dimensions : 679L x 240W x 310H mm
Voltage: 3×400 V/ 50 Hz
Power output: 1.55 KW
Current: 3.1 A
B: 240 mm
B1: 200 mm
B2: 230 mm
DD: 2 ½: inch
DS: 3 inch
D: 170 mm
H: 115 mm
H1: 310 mm
L: 679 mm
L1:305 mm
L2: 374 mm
L3: 36 mm
L4: 330 mm
Cable length: 10 m
Materal: Tombac/ stainless steel 1.4301 . Brass (AISI 304 )
Weight: 37kg

Pictures

Download Documents

Brochure: USP H 673 D
