ProfiClear coarse debris extrac

Order no.: 51064
Dimensions: 830Lx600Wx820H (mm)

Product characteristics

  • Incoming water is fed through two large-surface extraction sieves into the next filter chamber
  • Pulling the slide valve flushes the debris out via a DN 75 discharge
  • Incl. hose coupling for fresh water rinsing
  • The extraction sieves are quickly cleaned with interior and exterior brushes by operating the cleaning handle.
  • A pollutant level indicator signals when maintenance is required.
  • Automatic and regular cleaning is possible via the ProfiClear Screendrive (optional accessory)

Warranty: 1 year

Specifications

Order no.: 51064
Dimensions(L x W x H): 830x600x820 mm
Net weight: 38,5 kg
Coarse debris extraction: 800 MIM
Inlets ProfiClear Classic: 1 x DN 110 / DN 150 + 2 x DN 50
Outlets ProfiClear Classic: 1 x DN 110 / DN 150
Connections, sludge discharge: DN 75
Pump capacity, max.: 12500 l/h
Rec. flow rate (pump-fed): 8000 l/h
Rec. flow rate (gravity-fed): 6000 l/h
Other: Pollutant discharge incl. slide valve

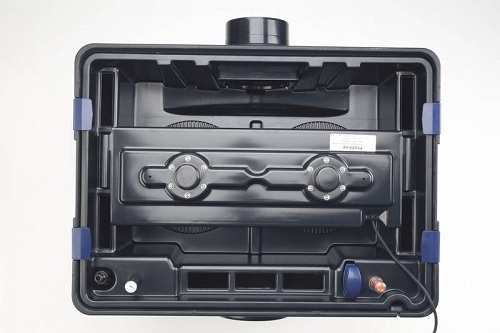

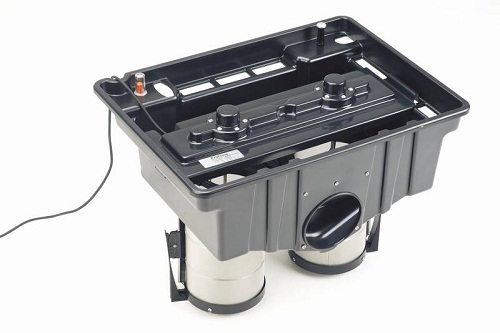

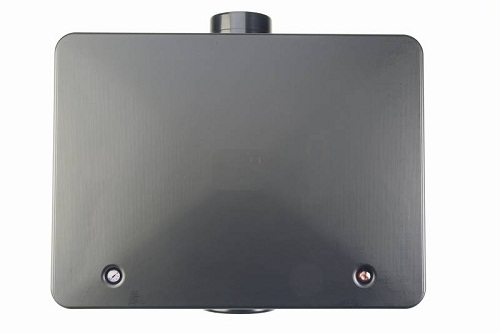

Pictures

Download Document

Brochure: ProfiClear Classic coarse debris extrac

Manual: ProfiClear coarse debris extrac
