ProfiClear drum filter gravity

Product characteristics

Highly efficient filter system with deep bed filtration to 60 microns

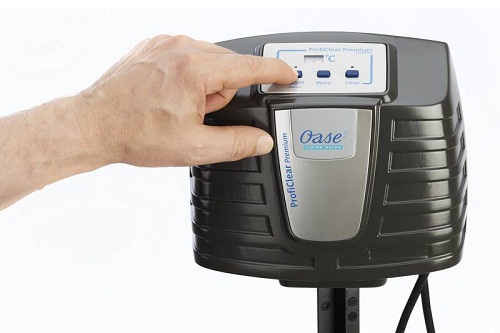

Intelligent controller completely handles the self cleaning
First class price/performance ratio

Warranty: 1 year

Specifications

Order no.: 56774
Dimensions(L x W x H): 830x600x815 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 5 W
Power consumption cleaning: 1050 W
Cable length: 2.00 + 2.00 m
Net weight: 74,5 kg
Control unit: Microcontroller
Temperature display: Digital
Coarse debris extraction: 60 MIM
Number of nozzles / cleaning flow rate: 4 x 2.5 l/min
Scavenging pump: 6 bar
Automatic self cleaning: Manually, Time interval, Sensor

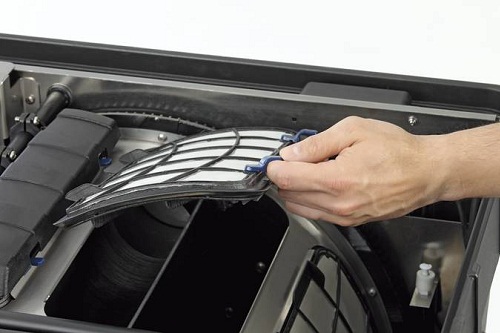

Number of sieve elements: 8 ST
Filter intake surface: 4200 cm2

Material: GRP Duroplast/stainless steel
Number of inlets: 4 ST
Connection inlet: 50 mm
Connection inlet: DN 110
Number of outlets: 2 ST
Connections, outlet: DN 150
Connections, sludge discharge: DN 75, DN 110
Connection mud drain: DN 110
Connection to: Bitron Gravity
Pump capacity, max.: 35000 l/h
Installation height above water level: 13 cm
Pos. water level difference: -20 mm
Type of use: Gravity fed system
Other: Pollutant discharge incl. slide valve
