Product characteristics
Incl. OASE Clear Water Guarantee
Filter technology simply selected and ready for connection

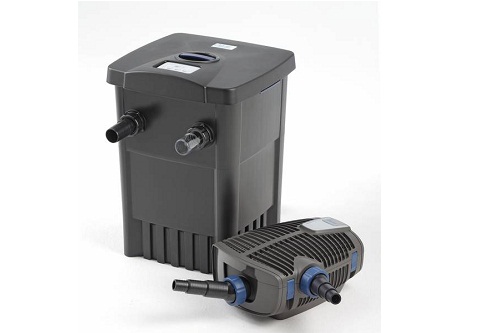

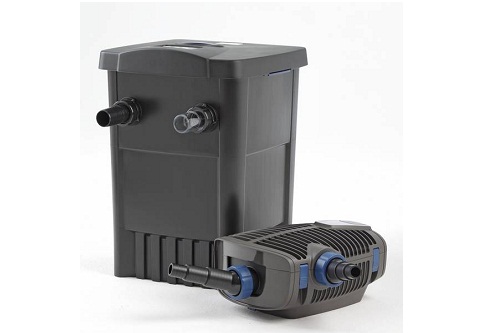

Complete set includes: Intelligent flow through filter FiltoMatic CWS with integrated UVC clarifier and matching filter pump AquaMax Eco Premium
Intelligent control system adjusts the filtration capacity to the seasonal requirements of the pond
Up to 40% power savings thanks to UVC unit with patented self-cleaning that is activated as needed; also includes oxygen enrichment
Cleaning effort is reduced thanks to automatic sludge discharge of the filter
Long service life and high quality filter sponges offer the best conditions for the filter biology
Less string algae through continuous removal of phosphates and nutrients
Special space saving filter design
If there is a supplemental requirement for filter capacity, if the pond is enlarged or fish stock is increased, the set can be extended with OxyTex pond aerators (see selection table)

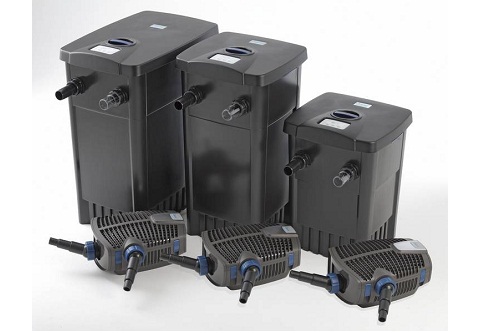

Available in three sizes, incl. 100 ml BioKick

Warranty: 1 year

Specifications

FiltoMatic CWS 7000

Order no.: 50906
Dimensions(LxWxH): 380x380x520 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 17 W
Power consumption cleaning: 41 W
Power cable length: 10 m
Net weight: 9,64 kg
UVC power: 11 W
Number of purple filter foams: 2 ST
Number of red filter foams: 1 ST
[/ Col] [Col span = “1/2”] Temperature display: Digital
UVC operating hours meter: 8000 h
Connection inlet: 38 mm
Connection inlet: 1 1/2″
Connections, outlet: DN 75
Connections, sludge discharge: DN 40
Min. flow rate: 2500 l/h
Max. flow rate: 4000 l/h
Suitable for ponds up to max.: 7 m3
Suitable for ponds with fish stock: 3,5 m3
Suitable for ponds with koi: 2 m3

AquaMax Eco Premium 4000

Order no.: 50734
Dimensions(LxWxH): 340x280x165 mm
Rated voltage: 220-240 V/ 50/ 60 Hz
Power consumption: 10-35 W
Power cable length: 10 m
Net weight: 5,3 kg
Max. flow rate: 66 l/Min
Max. flow rate: 4000 l/h
Max. head height: 3,3 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 25/ 32/ 38 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″
Filter intake surface: 1000 cm2
Coarse debris displacement max.: 10 mm
Electronically adjustable: Yes
Setup type: Can be setup underwater & dry





Pictures

Download Documents

Brochure: FiltoMatic CWS Set 7000

Hướng dẫn sử dụng: FiltoMatic CWS Set 7000
