Home/WATER & GARDENS/FILTERS, UVC & AERATION/MODULAR FLOW-THROUGH FILTERS

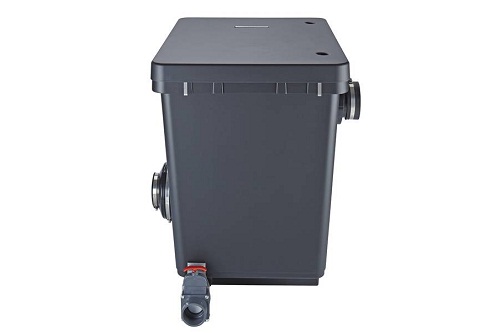

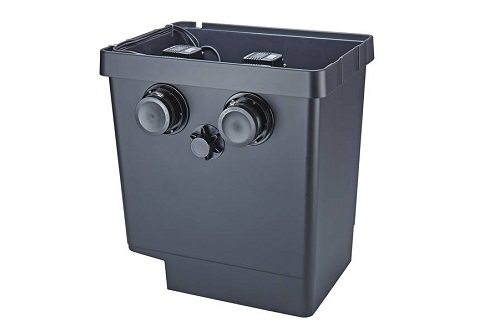

ProfiClear pump Compact/Classic

Order no.: 42913
Dimensions: 830L x 665W x 820H (mm)

Category: Tags: , , , , , ,

Product characteristics

  • Can be individually matched to the size and the conditions of the pond
  • Can be modularly extended if the pond changes
  • Can be used in the energy saving gravity fed system

Warranty: 1 year

Specifications

Order no.: 42913
Dimensions (L x W x H): 830 x 665 x 820 mm
Net weight: 35 kg
Inlets ProfiClear Classic: 2 x DN 110 / 1 x DN 150
Outlets ProfiClear Classic: 1 x 2″ / 2 x DN 110
Connections, sludge discharge: DN 75
Pump capacity, max.: 25000 l/h
Rec. flow rate (pump-fed): 20000 l/h
Rec. flow rate (gravity-fed): 20000 l/h
Other: Pollutant discharge incl. slide valve

Pictures

Download Documents

Brochure: ProfiClear pump Compact/Classic

Hướng dẫn sử dụng: Bơm ProfiClear Compact/Classic
