ProfiClear drum filter pump-fed

Order no.: 50773
Dimensions: 830Lx600Wx820H (mm)

Product characteristics

  • Maximum filter capacity to 60 µm and flow-through rates to 25 m³/h for crystal-clear view
  • Automatic self-cleaning offers maximum convenience
  • A microcontroller system monitors and controls the main functions, operation is as easy as child’s play
  • Extensive VDE test certify reliability and safe functions
  • Flexible implementation possibilities; can be used in the gravity-fed system, as well as in the pump-fed system
  • Stable housing thanks to solid stainless steel elements and dimensionally stable Duroplast
  • Easy-to-remove sieve elements and free-wheeling function for easy access to the drum
  • Particularly quiet in operation thanks to extensive noise insulation

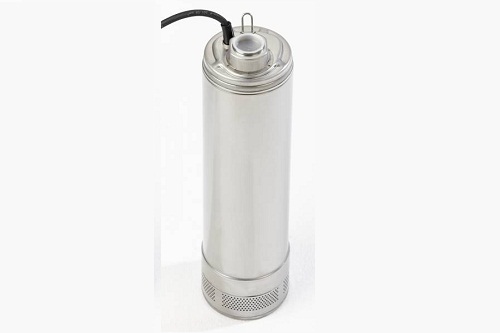

  • Powerful Ebara pressure pump is integrated for flushing the drum

Warranty: 1 year

Specifications

Order no.: 50773
Dimensions(L x W x H): 830 x 600 x 820 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 5 W
Power consumption cleaning: 1050 W
Cable length: 2.00 + 1.00 m
Net weight: 74 kg

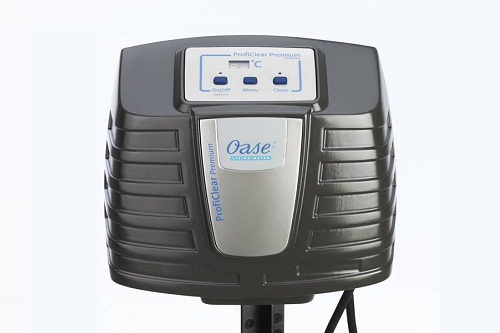

Control unit: Microcontroller
Temperature display: Digital
Coarse debris extraction: 60 MIM
Number of nozzles / cleaning flow rate: 4 x 2.5 l/min
Scavenging pump: 6 bar
Automatic self cleaning: Manually, Time interval, Sensor
Number of sieve elements: 8 ST
Filter intake surface: 3454 cm2
Material: GRP Duroplast/stainless steel
Number of inlets: 2 ST
Connection inlet: 50 mm
Connection inlet: 2 x 2″ + Bitron
Number of outlets: 2 ST
Connections, outlet: DN 150
Connections, sludge discharge: DN 75, DN 110
Connection mud drain: DN 110
Connection to: Bitron Eco 120 – 240 W, Bitron C 72 – 110 W
Pump capacity, max.: 25000 l/h
Installation height above water level: 40 cm
Pos. water level Difference: 5 cm
Type of use: Pump fed system
Other: Pollutant discharge incl. slide valve
