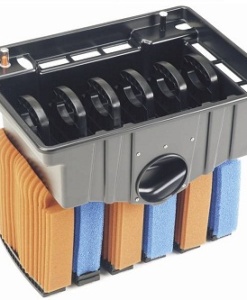

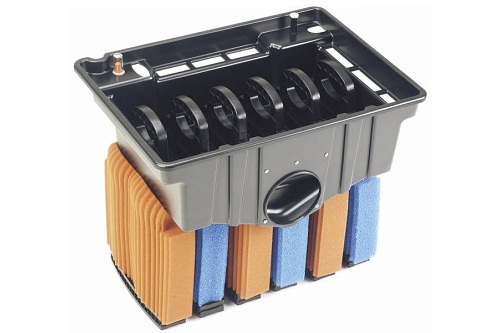

ProfiClear filter foam module

Order no.: 51065
Dimensions: 830Lx600Wx820H (mm)

Product characteristics

  • The water that is to be filtered is channelled through the coarse and fine foams that contain the vital filter biology
  • The oxygen necessary for the nitrification processes is supplied via connections on the housing

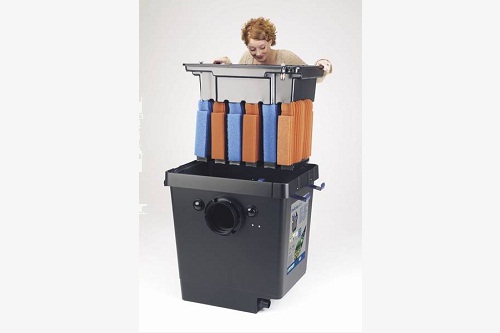

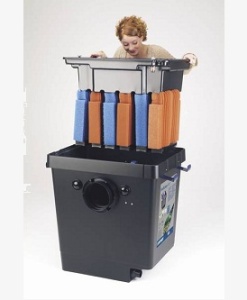

  • The foams are cleaned by compressing against the intermediate floor via the cleaning levers.
  • Pulling the slide valve 3 flushes the debris out via a DN 75 discharge, which can be supported through rinsing via cleaning nozzles
  • Incl. hose coupling for fresh water rinsing

Warranty: 1 year

Specifications

Order no.: 51065
Dimensions (L x W x H): 830x600x820 mm
Net weight: 43 kg
Biological filter surface: 90 m2
Number of blue filter foams: 3 ST
Number of red filter foams: 3 ST
Inlets ProfiClear Classic: 1 x DN 110 / DN 150 + 2 x DN 50
Outlets ProfiClear Classic: 1 x DN 110 / DN 150
Connections, sludge discharge: DN 75
Pump capacity, max.: 12500 l/h
Rec. flow rate (pump-fed): 8000 l/h
Rec. flow rate (gravity-fed): 6000 l/h
Other: Pollutant discharge incl. slide valve

Pictures

Download Documents

Brochure: ProfiClear filter foam module

Hướng dẫn sử dụng: Bộ lọc bọt ProfiClear
