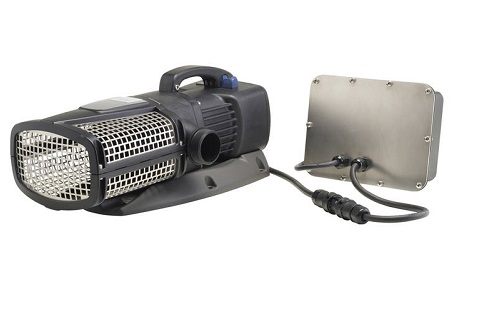

AquaMax Eco Expert 20000 / 12 V

Order no.: 55313
Power consumption: 30 – 260 W

Product characteristics

New, energy-efficient pump generation for extremely powerful and economic delivery capacity
Perfect for use in demanding filter systems or for large watercourses and waterfalls
Outstanding displacement of coarse debris down to 11 mm in size
Robust and durable stainless steel housing for stability
Unique, patented frost protection: the pump will not be damaged at temperatures as low as -20° C
Protection against dry run and blocking through Environmental Function Control (EFC by OASE)
Can be set up underwater & dry
The pump is unusually quiet in operation; ideal for use in a pump chamber
Patented »Seasonal Flow Control« for intelligent and environmentally-conscious regulation of flow rate and delivery head
An additional 30% energy savings is possible with SFC switched on

Specifications

Order no.: 55313
Dimensions: 490mmLx240mmWx210mmH
Rated voltage (primary, secondary): 220 – 240 V / 50 – 60 Hz, 12 V / DC
Power consumption: 30 – 260 W
Power cable length: 8.00 m
Cable length 12 V-device: 2.50 (Power unit) + 8.00 m
Net weight: 14.60 kg
Guarantee: 1 Year
Max. flow rate: 321 l/min
Max. flow rate: 19300 l/h
Max. head height: 4.60 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 38/50 mm
Connection for hoses: 1 ½”, 2″
Filter intake surface: 1060 cm²
Coarse debris displacement max.: 11 mm
Connection EGC: Yes
Electronically adjustable: Yes
Setup type: Can be setup underwater & dry

PICTURES

DOWNLOAD DOCUMENT

Brochure: AquaMax Eco Expert 20000 / 12 V
