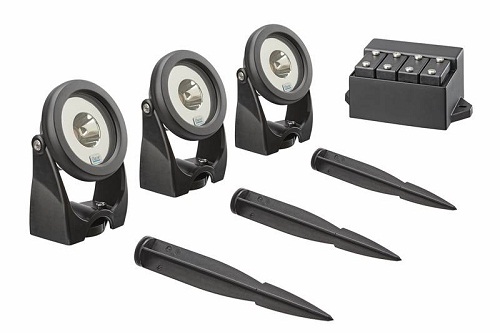

LunAqua Power LED Set 3

Order no: 42634
Dimensions(ØxH): 80×117 mm

Product characteristics
Included in the scope of delivery: 1 or 3 lights, each with 5 m cable, LED driver with connection possibility for 4 light fixtures as well as 1 or 3 ground stakes
Easy extension of up to 4 lights per set through the separately available LunAqua Power LED W
Small, compact spotlight with robust underwater connection technology
A lot of light and significant energy savings: it is one of the brightest LED spotlights in our pond illumination product range
Only 5.8 W power consumption, yet as bright as a 50 W light bulb
Safe operation of the spotlights through 24 V DC low voltage, also in swim ponds
Spotlights, drivers and cable suitable for underwater use to a depth of 4 m (protection class IP 68, however standard regulations do not allow underwater use of the driver in swim ponds)
Service life more than 36,000 h thanks to excellent thermal management, high quality of the LEDs used.
10 m cable for extension between light fixture and driver available as an accessory (max. 4 x per strand)

Warranty: 1 year

Specifications

Order no: 42634
Dimensions(Ø x H): 80×117 mm
Rated voltage: 0 – 24 V 350 mA / DC
Rated voltage(primary, secondary): 230 V / 50 Hz , 0 – 24 V / 350 mA / DC
Power consumption light fixture: 5.8 W
Energy efficiency class – light fixture: A++
Power consumption set: 19 W
Protection class: IP 68
Cable length 12 V device: 3.00 (Power unit) + 5.00 m
Power cable length: 5 m
Net weight: 3,3 kg
Illuminant type: LED
Number of individual LEDs: 1 ST
Light flux: 580 lm
Light colour: Warm-white
Colour temperature: 2700 K
Half peak angle: 30 Degrees


Download Documents

Brochure: LunAqua Power LED Set 3
