Product characteristics

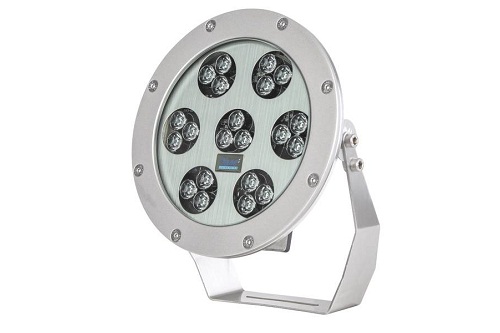

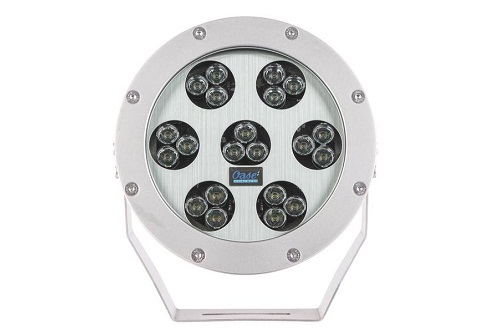

  • Energy-efficient LED RGBW spotlight with holding bracket and fine adjustment
  • 1263 lumens with a beam angle of 11°, max. 32 watt
  • Temperature-controlled, high-quality LED for a particularly long service life of up to 100,000 hours* *In submersed installation, through intelligent heat management and through the use of a quality brand LED, an LED service life of up to 100,000 h is possible. This claim is not relevant for the guarantee.
  • Wet and dry installation-watertight, IP 68 protection rating
  • For fresh water, pool water and sea-water
  • External electronics in a separate control box / connection box-watertight plug connection, easy to connect
  • RDM-DMX capable for underwater LED Driver/DMX/02 (50720)
  • Uniform colour mixes guaranteed with the underwater LED DriverDriver/DMX/02 (50720), through the brightness measurement of the individual LEDs
  • Galvanic isolation between DMX and 24 V DC
  • Stroboscope effect

Warranty: 1 year

Specifications

Item no.: 56388 Luminous flux all on: 1263 lm Luminous flux red: 284 lm Luminous flux green: 509 lm Luminous flux blue: 156 lm Luminous flux white: 313lm Colour temperature LED white: 4000 lm Colour rendering index (CRI): 80 % Half peak angle: 11 Degrees Stroboscope effect: yes
Weighted energy consumption: 35 kWh/th Rated voltage: 24 V/DC Power consumption: 32W Dim frequency: 2800 Hz Power connection type: 1 box Protection class: IP 68 Dimensions(Ø x H): 188 x 156 mm Material: Stainless steel Net weight: 3,16 kg


Download Documents

Brochure:ProfiLux LED Spot 1500 /DMX/02
