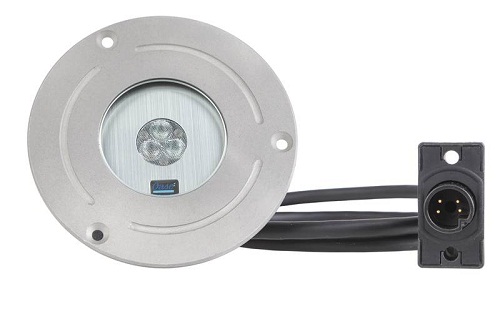

ProfiPlane LED 110 /DMX/02

Item no.: 55298 Dimensions: 109Øx50H (mm)

Product characteristics

  • Stainless steel frame in the same plane as the cover glass
  • 213 lumens with a beam angle of 25°, max. 6 watt
  • Temperature-controlled, high-quality LED for a particularly long service life of up to 100,000 hours* *In submersed installation, through intelligent heat management and through the use of a quality brand LED, an LED service life of up to 100,000 h is possible. This claim is not relevant for the guarantee.
  • Wet and dry installation – watertight, IP 68 protection rating
  • For fresh water, pool water and sea-water
  • External electronics in a separate control box / connection box – watertight plug connection, easy to connect
  • RDM-DMX capable for underwater LED Driver/DMX/02 (50720)
  • Uniform colour mixes guaranteed with the underwater LED DriverDriver/DMX/02 (50720), through the brightness measurement of the individual LEDs
  • Galvanic isolation between DMX and 24 V DC
  • Stroboscope effect

Warranty: 1 year

Specifications

Item no.:55298 Luminous flux all on: 213 lm Luminous flux red: 64 lm Luminous flux green: 114 lm Luminous flux blue: 35 lm Half peak angle: 25 Degrees Stroboscope effect: yes Rated voltage: 24 V DC
Power consumption: 6 W Dim frequency: 2800 Hz Power connection type: Hybrid plug Power cable length: 1m Protection class: IP 68 Dimensions(Ø x H): 109x 50 mm Material: Stainless steel Net weight: 0.7 kg


Download Documents

Brochure: ProfiPlane LED 110 /DMX/02
