VarioJet 42-15

Order no.: 58906a
Dimensions: 69×534 mm

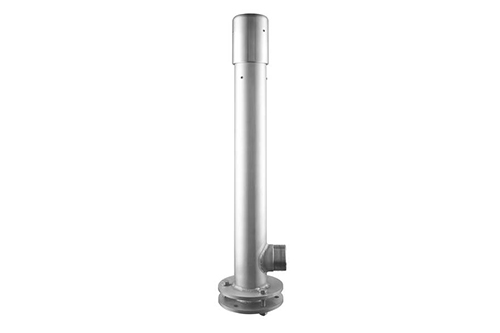

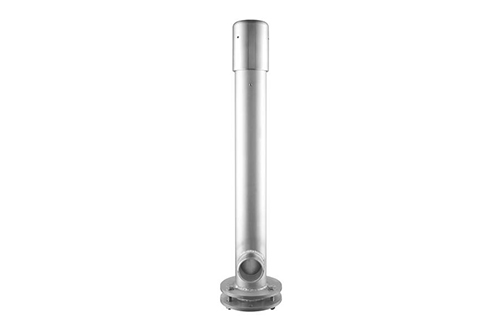

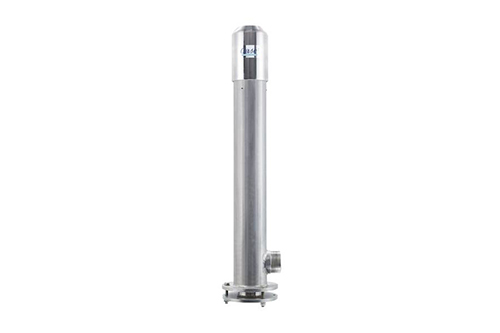

The VarioJet Nozzle creates a dynamic, variable water pattern. The nozzle is driven by two Varionaut pumps.
The nozzle generates spray patters from a water bell up to a single stream. These different water patterns are formed by controlling both the Varionaut pumps individually.

Product characteristics at a glance
• Dynamic and variable water pattern with two Varionaut pumps
• Compact, robust stainless steel Nozzle
• 2 pressure connections
• Nozzle with adjustable flange
• Sea water VarioJet on request

Warranty: 2 years

Specifications

Order no.: 58906a
Dimensions: 69×534 mm
Max. fountain height(2x Varionaut 150): 2.90 m
Max. fountain height(Varionaut 150/365): 7.60 m
Material : stainless steel 1.4301 (AISI 304)
Weight: 5.1kg

Pictures

Download Documents

Brochure: VarioJet 42-15
