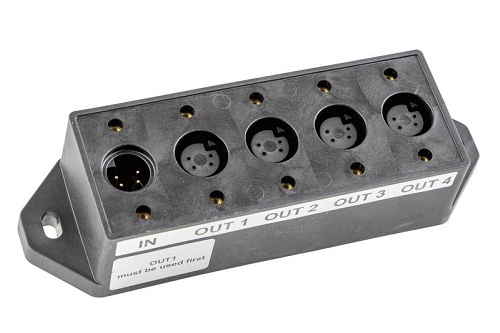

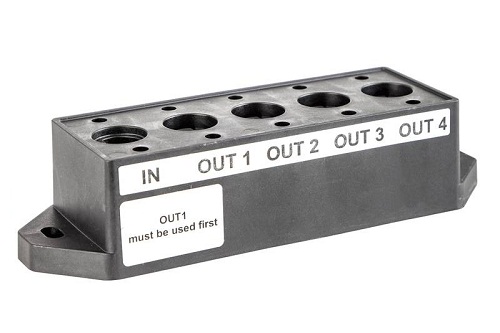

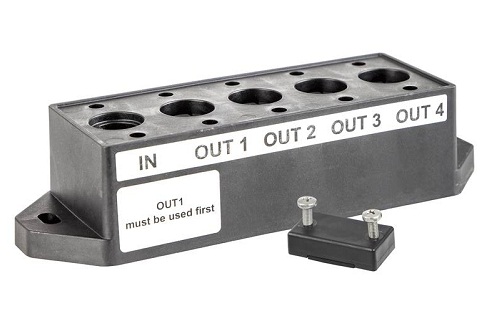

Hybrid connection box

Order no.: 56404 Diameter: 184Lx54Wx43H mm

OASE Extension cable hybrid are designed for underwater applications as well.

The Extension cable hybrid (data+ power supply) are suitable for:
– ProfiLux LED 110/DMX/02 (56267)
– ProfiPlane LED 110/DMX/02 (56298)
– ProfiLux LED 320/DMX/02 (50717)
– ProfiRing LED 320/DMX/02 (50718)
– ProfiPlane LED 320/DMX/02 (50719)
– ProfiLux LED Spot 1500/DMX/02 (56388)
– ProfiLux LED Flood 1500/DMX/02 (56391)
Only one extension cable can be used per LED unit.

Product characteristics at a glance
• Hybrid connection box for max. 4 lights (ProfiLux LED 110/DMX/02 or ProfiPlane LED 110/DMX/02)
• All 4 outlets just simultaneously controllable
• RDM status information from outlet 1
• Female / male connection
• Protection class IP 68
• Only one connection box per Line

Warranty: 1 year



Specifications

Order no.: 56404 Diameter: 184Lx54Wx43H mm Maximum current: 8.4 A Weight: 0.4 kg


Download Documents

Brochure: Hybrid connection box
