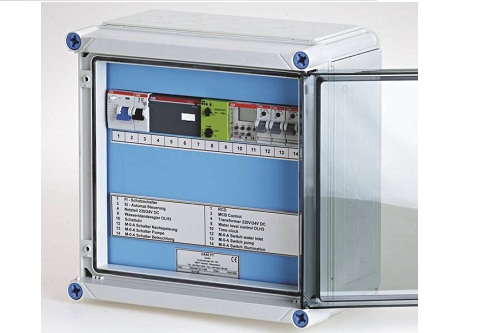

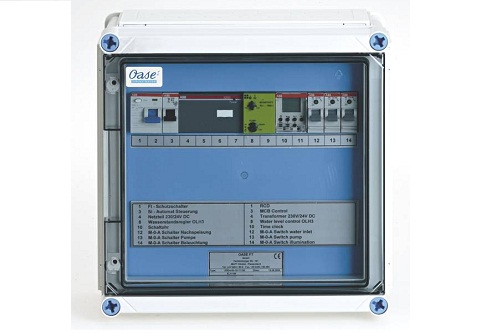

Switchgear EL 101 W

Order no.: 51342 Dimensions: 320Lx320Wx200H mm

OASE switchgear and control centres for spray fountain or fountain installations are manufactured with the latest technology. They satisfy the VDE guidelines in all points and are equipped with all required protection and safety fixtures.

Product characteristics at a glance
• Especially suitable for public systems
• Equipped with all required protection and safety fixtures
• Wired ready-to-connect
• Special solutions are manufactured on customer request

Warranty: 1 year

Specifications

Order no.: 51342 Dimensions: 320Lx320Wx200H mm Protection class: IP 55 Input voltage: 1 Vx 230/50 Hz Residual current protection switch; 25/0.03 A Timer, Number of programs: 2 Output voltage pumps: 1 x 230 V Output power pumps: 1 x 0.55 KW Type of motor start-up:  direct Output voltage water-level regulator:24 V/DC Output voltage water-level regulator: 1 x 15 W Number of M-0-A switches:  2 Number of indicator lights: 2 Weight: 6.2 kg


Download Documents

Brochure: Switchgear EL 101 W
