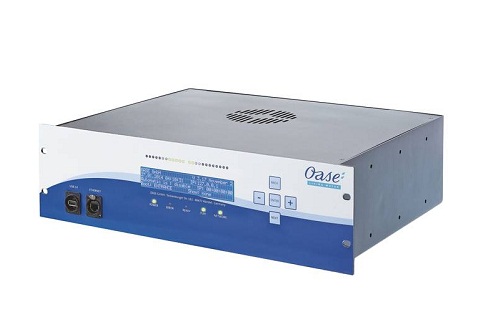

WECS II 2048 /DMX/02

Order no.:56507
Dimensions: 482Lx360Wx130H mm

The WECS II 2048/DMX/02 is the new server for 2048 DMX-RDM channels with audio file. With the WECS II 2048-Server multimedia shows can be played synchronously to the music in a desired time schedule accurately to the second. The WECS II (Water Entertainment Control System) – transmits DMX-RDM data packets to the individual components (lights, DMX-RDM controllable nozzles etc.) which enable them to act accordingly.

Product characteristics at a glance
• Showplayer with music output
• 2048 DMX – RDM channels, Modbus (up to 16 units), ArtNET
• 512 DMX input channels
• 2 x balanced audio outputs
• 1 x SMPTE input or output
• NetTimecode
• MTC (optional: additional interface required)
• RS232 and DVI
• 3 x USB 2.0
• Livepanel and I/O view
• Information window showing all important para-meters
• Master/slave function for several WECS II 2048 server
• Emergency function for backup systems
• E-mail function for all types of messages
• Intelligent logging system
• Automatic show update via internet
• Balance system for fountain height
• High flexibility
• Connection to different sensors (wind, water level etc.)
• Internal counter for all switching operations
• Automatic light control (ALC) specially for fountains

Warranty: 1 year

Specifications

Order no.: 56507
Dimensions: 482Lx360Wx130H mm
Weight: 12 kg
Housing: 19” Rack front colour white/blue
Protection class: IP20
PC Power supply: 100..240V AC, max. 500W
Operation temperature: 0..40°C / 0..80% humidity non condensed
Certification: CE

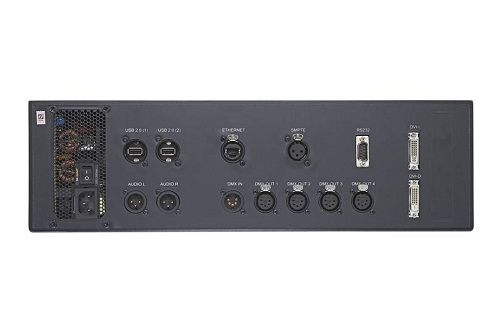

Outputs: 4 x DMX-RDM (clamps, optically isolated), 2048 DMX channels
2 x balanced audio
2 x Graphic card (ext.Videobeamershow),
3 x USB2.0,
Livepanel and I/O view
Several time codes (SMPTE, SNTC, NTC, MTC (optional: additional Interface required)
Art-Net and DMX /RDM
Modbus (up to 16 units)
Inputs: 512 DMX input channels
Sensor connection (wind, water level, etc.)
Several time codes (SMPTE, SNTC, NTC, MTC (optional: additional Interface required)
Network: 2 x Ethernet RJ45 10/100Mbit / incl. team-viewer software (remote control)
Memory: Solid state drive 60GB
Operation: 4 x 40 Segment LCD Display with 5 keys
Special: Master / slave function for grouping WECS 2048 II server
Intelligent Logging system
Solar calculation for automatic light control
Automatic Light Control (ALC) specially for fountains
Balance system for fountain height
Automatic show update via internet


Download Documents

Brochure: WECS II 2048 /DMX/02
