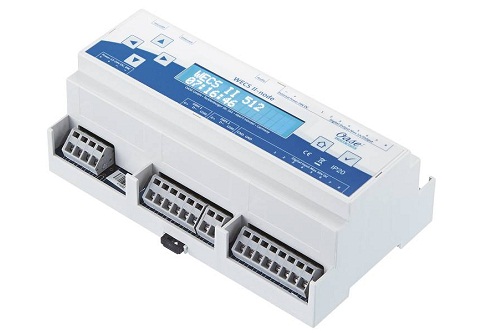

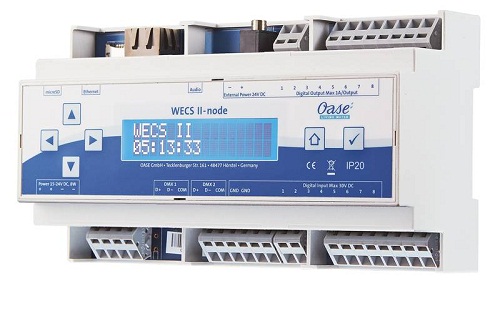

The new WECS II controller generation is capable of bi-directional (DMX-RDM) communication. The WECS II 512/DMX/02 is the new standalone Entertainment-Controller for 512DMX/RDM-Channels, and the WECS II 1024/ DMX/02 is the new music standalone Entertainment-Controller for 1024 DMX/RDM-channels with audio file.
Product characteristics at a glance
• Incl. Software
• Entertainment server standalone
• Entertainment server standalone with audio (56492 WECS II 1024/DMX/02)
• 512 DMX-RDM output channels standalone
• 1024 DMX-RDM output channels standalone (56492 WECS II 1024/DMX/02)
• 1024 DMX-RDM channels as interface for WECS II 2048
• Freely programmable inputs and outputs for controlling, shows, wind anemometers, waterlevel sensors, protections etc.
• User-friendliness
• Visual patching
Warranty: 1 year
Specifications
order no.: 56491 Dimensions: 158Lx94Wx58H mm Weight: 0.33 kg Housing: Polycarbonate Light grey/white/blue for top-hat rail mounting (35 mm DIN rail) or wall fastening Protection class: IP20 Power supply: 15..24V DC/ 8W Operation temperature: 0..40°C / 0..80% humidity non-condensed Certification: CE Outputs DMX-RDM: 512 DMX-RDM channels standalone Outputs: 8 x Digital Out (Clamps 24V DC/ 1A max., optically isolated) Inputs: 8 x Digital In (Clamps 24V DC., optically isolated) Others connections: Ethernet RJ45 10/100Mbit Memory: MicroSD-Card for Show-Files Operation: 2 x 16 Segment LCD Display with 6 keys Standaloneshows: WDS – Streamfile WDS-Streamfile & Audio file Interface: 2 x 512 DMX-RDM channels for WECS II 2048 ( O – Net ) Scheduler: Full Day- / Week- / Yearplaner Special: Windcontrolled (dimming) by external signal from Oase anemometer Mat.53913 Action: Manager Event Actions: Digital Inputs can be linked with actions (waterlevel, windspeed) Software: WEPS (WECS II 512/1024) for Windows 7 or better
Download Documents
Brochure : WECS II 512 /DMX/02
