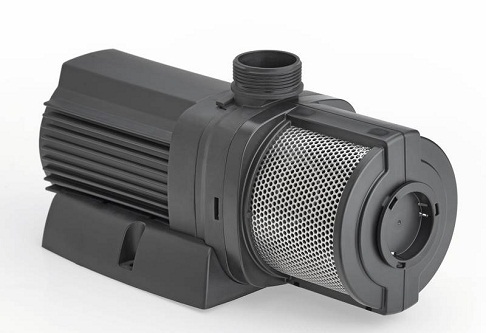

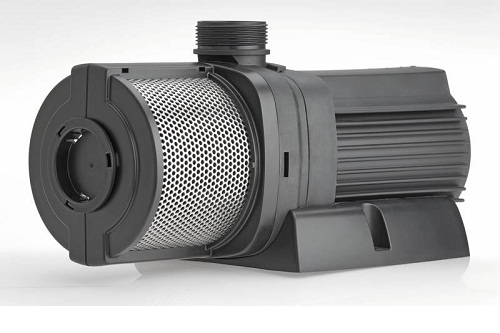

Varionaut 150 24V/DMX/02

Order no.: 57650
Power max.: 120W

The Varionaut 150 24V/DMX/02 is a DMX-RDM compatible 24 Volt DC pump. It fulfils national regulations of DC continuous current up to 30 V which permits this pump to be used directly below the nozzles in the pool. This individually regulated pump creates dynamic water effects. The Varionaut 150 24 V itself produces fountains of up to 3.1 m height in combination with Comet 10-12 T nozzles.

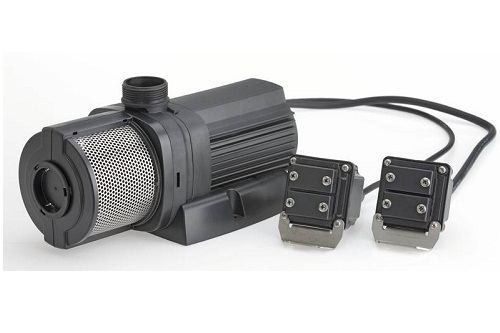

The Varionaut 150 24V is the big sister of the Varionaut 90 24V. It comes with a high-quality stainless steel filter housing, along with 2 connection boxes for (only 50665) the 24 V power supply and DMX/RDM data source. Through this special connection technology, wiring by waterproof, patented connection system makes the installation safer, easier and faster. Spotlights and other consumer loads (e.g. LED spotlights) can be connected easily to DMX/RDM of the pump.

Product characteristics at a glance
• 24V / DC fountain pump for indoor and outdoor application
• Suitable for wet installation
• Power consumption of max. 120 W
• Reverse polarity protection
• With 1 m BUS and power cable, each with a connection box (only 50665)
• Frost protected up to -20° C
• All parts IP 68 rated

Warranty: 1 year

Specifications

Order no.: 57650
Motor Type/Electronic : 24V DC,EC-Motor, DMX controlled(DMX-RDM enabled)
Hmax.: 16.40 ft
Qmax.: 2300 gph
Power max.: 120 W
Nominal current: 5 A
Dynamic behavior speed: (time to reach full fountain height from 0-100%) with comet 5-8 : 1 s
Qmin.(offset mode – DMX 0 ): 22 l/min
Max. Powering up/min. Off time: 1 x perminute /10 s
Nominal voltage: 24 V/DC
Immersion depth max.: 13.10 ft
Protection class: IP68
Dimensiond incl. filter: 12.20 x 6.30 x 6.20 (inch)
Suction side connection: thread G 1 ½inch(external thread)
Pressure side connection: thread G 1 ½inch ( external thread)
Weight: 11 lb
Filter housing: stainless steel / plastic
Input DMX: 3.28 ft BUS cable with DMX box
Input power: 20ft power cable with power box
Number of DMX channels: 2 channels (control channel , speed channel)
Emvironmental conditions: submersible Application: water temperature : Min. 4 to max. 35°C
Emvironmental conditions: Ambient temperature : max. 30°C with natural convection, max. 40 with forced convection, no direct sun exposure permitted


Download Documents

Brochure: Varionaut 150 24V/DMX/02
