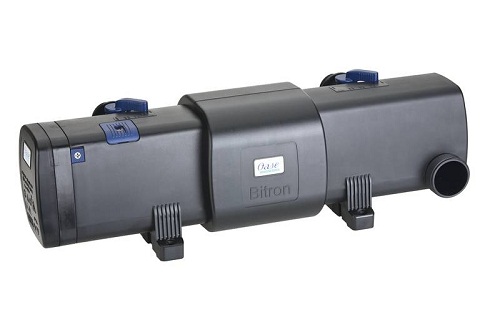

Bitron C 110 W

Description
Specifications
Pictures
Download Documents
Videos

Suitable for ponds up to 110 m³
Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen levels
Clever UVC function monitor, display for bulb change and water temperature
Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
Individual water flow adjustment for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100%, VDE-certified safety; does not cause eye injuries

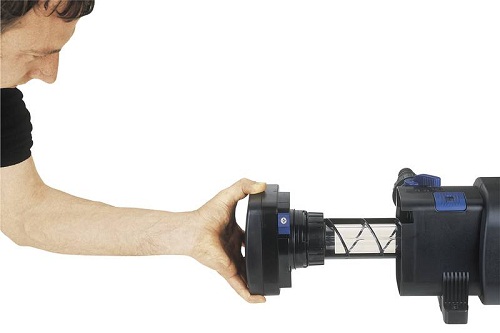

Quick release technology for easy bulb replacement
High-quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb

Specifications

Order no.: 56902
Dimensions(L x W x H): 730 x 215 x 200 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 110 W
Power cable length: 5 m
Net weight: 6,5 kg
UVC power: 110 W
Temperature display: No
Bypass control: manually
UVC operating hours meter: No
Number of inlets: 1 ST
Connection inlet: 19 / 25 / 32 / 38 / 50 mm
Connection inlet: 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Number of outlets: 2 ST
Connections, outlet: 25 / 32 / 38 mm
Connections, outlet: 1″, 1 1/4″, 1 1/2″
Max. operating pressure: 1 bar
Pump capacity, min.: 12000 l/h
Pump capacity, max.: 40000 l/h
Suitable for ponds up to max.: 110 m3
Suitable for ponds with fish stock: 55 m3
Suitable for ponds with koi: 27,5 m3
Connection to: ProfiClear, BioTec ScreenMatic² 140000, BioTec 30
Other: Opt. Function check
