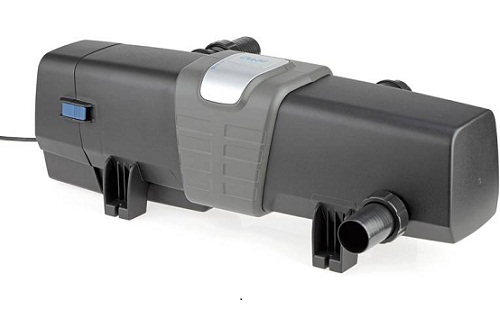

Bitron Eco 180 W

Order no.: 56405
Power consumption: 180 W

SKU: 56405 Category: Tags: ,

Product characteristics

  • Concentrated UVC power clears ponds up to 240 m³
  • High intensity treatment of suspended algae, turbidity and harmful bacteria in the pond water
  • Now with unique UVC bulb with 50% longer service life (12000 h) – developed in cooperation with Philips
  • High volume UVC housing with a new design and organic shape for a particularly long water dwell time
  • Eco controller enables maximum energy-efficiency with savings potential of up to 50%* *Compared with devices in continuous operation. Bitron Eco 240 at 305 days of operation in EcoMode 50% and Central European temperature profile. With a different combination, savings are possibly lower. CO² calculation: www.iwr.de
  • More protection for the climate. Eco mode saves up to 525 kg CO²/year* *Compared with devices in continuous operation. Bitron Eco 240 at 305 days of operation in EcoMode 50% and Central European temperature profile. With a different combination, savings are possibly lower. CO² calculation: www.iwr.de
  • Intelligent bypass regulation automatically adapts the flow rate to the pump capacity in the filter system
  • If desired, continuous irradiation or device switch-off are possible at the touch of a button

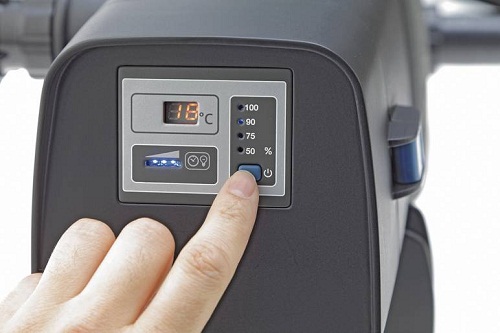

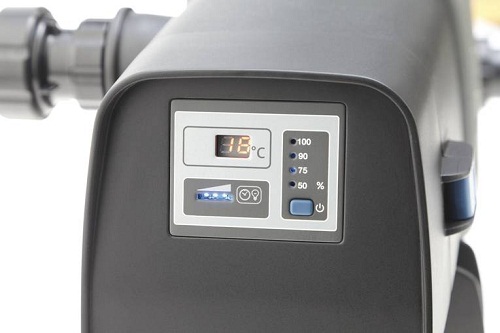

  • Clever UVC function monitor, display for bulb change and water temperature
  • Clever UVC function monitor, display for bulb change and water temperature
  • 100%, VDE-certified safety; does not cause eye injuries

Warranty: 1 year

Specifications

Order no.: 56405
Dimensions (L x W x H): 725 x 227 x 248 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 180 W
Power cable length: 5 m
Net weight: 8,25 kg
UVC power: 180 W
Temperature display: Digital
Bypass control: automatic
UVC operating hours meter: 12000 h
Number of inlets: 1 ST
Connection inlet: 38 / 50 mm
Connection inlet: 1 1/2″, 2″
Number of outlets: 1 ST
Connections, outlet: 38 / 50 mm
Connections, outlet: 1 1/2″, 2″
Max. operating pressure: 1 bar
Suitable for ponds up to max.:  180 m3
Suitable for ponds with fish stock: 90 m3
Suitable for ponds with koi: 45 m3
Connection to: ProfiClear, BioTec ScreenMatic² 140000, BioTec 30
Other: LED function check

Pictures

Videos

Download Documents

Brochure: Bitron Eco 180 W

Marual: Bitron Gravity 180W
