Product characteristics
Robust and reliable: Automatic pump switchon and switch-off through the float switch
Well-protected: Ceramic-coated stainless steel shaft
Versatile: Adjustable handle
Solid: High-quality and robust stainless steel housing
Easy to connect: Incl. 90° bend and stepped adapter
Powerful: Generously-dimensioned motors
Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis
Specifications
Order no.: 42268
Flow rate Q max.: 14500 l/h
Delivery head H max.: 11 m
Pressure max.: 1,1 bar
Power consumption: 950 W
Rated voltage: 230 V/ 50 Hz
Immersion depth max.: 7 m
Particle size max.: 30 mm
Automatic function: Float switch
Connection pressure-side: 1 1/2″
Power cable length: 10 m
Net weight: 8,2 kg
Dimensions(LxWxH): 193x247x422 mm
Pictures
-

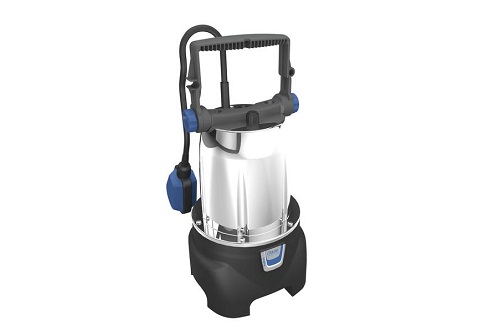

- ProMax ClearDrain 7000
-

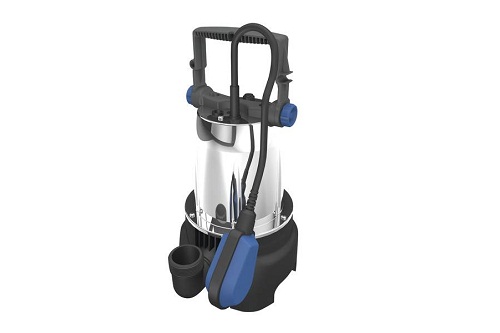

- ProMax ClearDrain 7000
-
- ProMax ClearDrain 7000
Product Videos
Download Documents
Brochure : ProMax MudDrain
