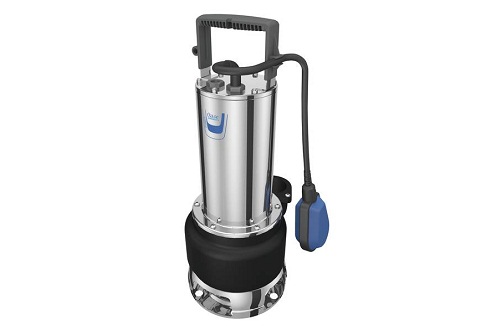

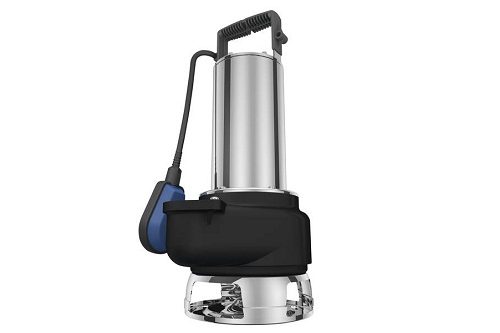

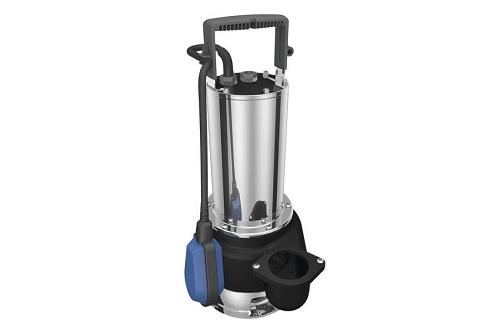

ProMax MudDrain 20000

Order no.: 42269
Net weight: 13,4 kg

SKU: 42269 Category: Tags: ,

Product characteristics
For big bodies of water: Pumps 28000 litres of water per hour
For the coarse: Pumps contamination particles to 40 mm in diameter
Secure stance: Robust stainless steel base
Robust: Ergonomic handle with stainless steel reinforcement
Solid: High-quality and robust stainless steel housing
Powerful: Generously-dimensioned motors
Reliable: Proven seal set with oil chamber

Warranty: 1 year

Specifications

Order no.: 42269
Flow rate Q max.: 23000 l/h
Delivery head H max.: 10 m
Pressure max.: 1 bar
Power consumption: 1200 W
Rated voltage: 230 V / 50 Hz
Immersion depth max.: 7 m
Particle size max.: 40 mm
Automatic function: Float switch
Connection pressure-side: 2″
Power cable length: 10 m
Net weight: 13,4 kg
Dimensions(LxWxH): 178x246x453 mm

Pictures

Videos

Download Documents

Brochure : ProMax MudDrain
