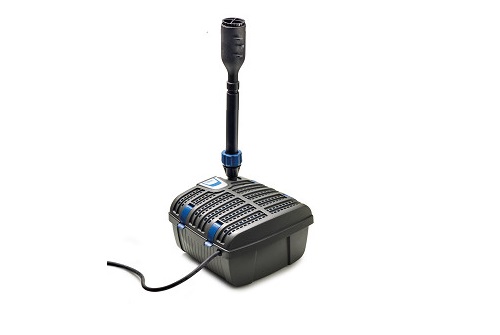

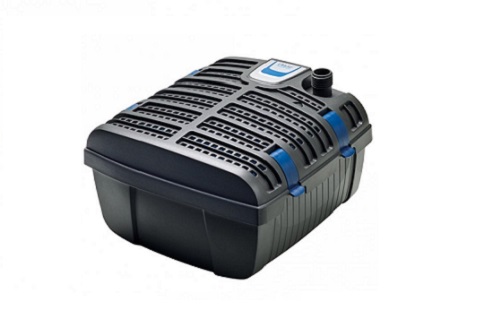

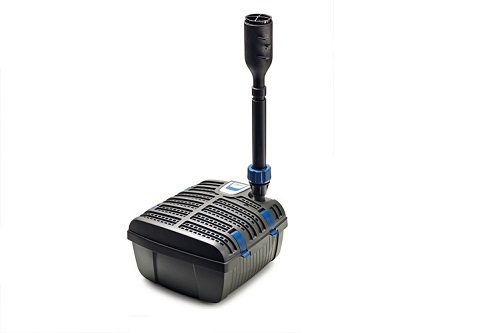

Filtral UVC 1500

Order no.: 70223
Power consumption: 5 W

Product characteristics

  • An all-rounder with filter function, fountain.
  • Including OASE Clear Water Guarantee.
  • Compact filter unit with UVC technology and 4 different filter materials.
  • The pump for attractive fountains is already integrated.
  • Height-adjustable fountain attachment for adapting to individual water depths.
  • Adjustable T-piece for operating spouts and small watercourses.
  • Individual adjustment of flow rate and fountain height.
  • Set up completely under water – the appearance of the pond remains undisturbed.
  • Visual function check of the UVC clarifier.
  • Included in the scope of delivery: 3 fountain attachments for different water patterns.

Warranty : 1 year

Specifications

Order no.: 75952
Dimensions(L x W x H): 207 x 228 x 130 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 18 W
UVC power: 5 W
Power cable length: 10 m
Net weight: 3.1 kg
Pump capacity, max: 750 l/h

Max. flow rate: 560 l/h
Max. head height: 0.9 m
Filter intake surface: 301 cm²
Special filter granulate: 0.1 kg
Pressure-side connection ½”
Suitable for ponds up to max.: 1.5 m³
Suitable for ponds with fish stock: 0.7 m³



Pictures

Videos



Download Documents

Brochure : Filtral UVC 1500

Hướng dẫn sử dụng: Filtral UVC 1500
