Product characteristics
Suitable for ponds from 5 – 140 m³
Filter technology simply selected and ready for connection

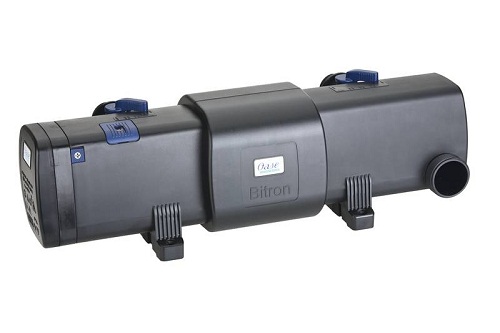

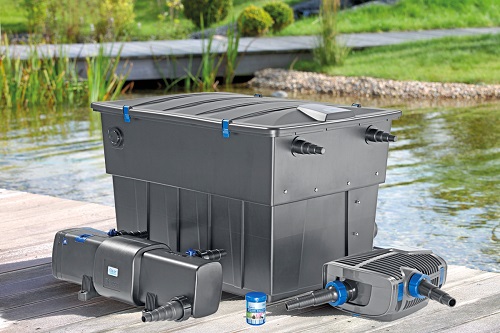

Complete set includes: Flow through filter BioTec ScreenMatic² with Bitron C self-cleaning UVC clarifier and AquaMax Eco Premium energy efficient filter pump
Incl. OASE Clear Water Guarantee
Combination of mechanical biological cleaning and effective UVC technology
Fast and easy set up
Incl. BioKick Filter Starter for initial settlement of microorganisms

Warranty: 1 year

Specifications

BioTec ScreenMatic² 60000

Order no.: 57695
Dimensions(LxWxH): 788x590x545 mm
Rated voltage(primary, secondary): 230 V / 50 Hz , 12 V
Power consumption: 5 W
Cable length 12 V device: 2.10 (Power unit) + 5.00 m
Net weight: 25 kg
Number of filter foams, total: 8 ST
Number of blue filter foams: 2 ST
Number of red filter foams: 3 ST
Number of purple filter foams: 3 ST
Special filter granulate: 3,5 kg
Temperature display: No
Coarse debris extraction: 300 MIM
Connection inlet: 25 / 32 / 38 mm
Connection inlet: 1″, 1 1/4″, 1 1/2″
Connections, outlet: DN 75
Connections, sludge discharge: DN 50
Min. flow rate: 6000 l/h
Max. flow rate: 11000 l/h
Suitable for ponds up to max.: 60 m3
Suitable for ponds with fish stock: 30 m3
Suitable for ponds with koi: 15 m3
Connection to: Bitron Eco 120 – 240 W, Bitron C 36 – 110 W

AquaMax Eco Premium 16000

Order no.: 50745
Dimensions(LxWxH): 340x280x165 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 11 – 145 W
Power cable length: 10 m
Net weight: 5,4 kg
Max. flow rate: 260 l/Min
Max. flow rate: 15600 l/h
Max. head height: 5,2 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 25 / 32 / 38 / 50 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″, 2″
Filter intake surface: 1000 cm2
Coarse debris displacement max.: 11 mm
Electronically adjustable: Yes
Setup type: Can be setup underwater & dry

Pictures

Videos



Download Documents

Brochure: BioTec ScreenMatic² Set 60000

Hướng dẫn vận hành: AquaMax-Eco-Premium;  BioTec ScreenMatic² 60000Bitron C
