Product characteristics
Suitable for ponds from 5 – 140 m³
Filter technology simply selected and ready for connection

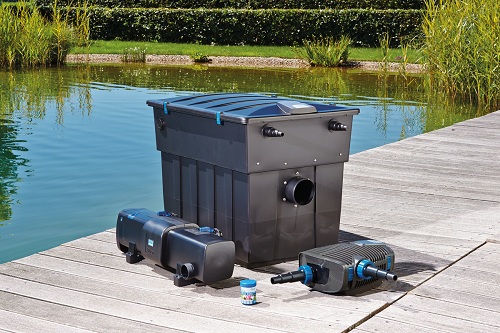

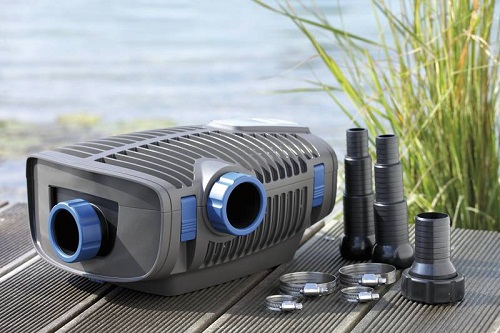

Complete set includes: Flow through filter BioTec ScreenMatic² with Bitron C self-cleaning UVC clarifier and AquaMax Eco Premium energy efficient filter pump
Incl. OASE Clear Water Guarantee
Combination of mechanical biological cleaning and effective UVC technology
Fast and easy set up
Incl. BioKick Filter Starter for initial settlement of microorganisms

Warranty: 1 year

Specifications

BioTec ScreenMatic² 90000

Order no.: 46178
Dimensions(LxWxH): 788x590x645 mm
Rated voltage (primary, secondary): 230 V / 50 Hz , 12 V
Power consumption: 5 W
Cable length 12 V device: 2.10 (Power unit) + 5.00 m
Net weight: 30 kg
Number of filter foams, total: 16 ST
Number of blue filter foams: 4 ST
Number of red filter foams: 6 ST
Number of purple filter foams: 6 ST
Special filter granulate: 5 kg
Temperature display: No
Coarse debris extraction: 300 MIM
Connection inlet: 38 mm
Connections, outlet: DN 110
Connections, sludge discharge: DN 50
Min. flow rate: 8000 l/h
Max. flow rate: 12500 l/h
Suitable for ponds up to max.: 90 m3
Suitable for ponds with fish stock: 45 m3
Suitable for ponds with koi: 22,5 m3
Connection to: Bitron C 36 – 110 W



Pictures

Videos



Download Documents

Brochure: BioTec ScreenMatic² Set 90000

Hướng dẫn vận hành: AquaMax-Eco-Premium;  BioTec ScreenMatic²90000Bitron C
