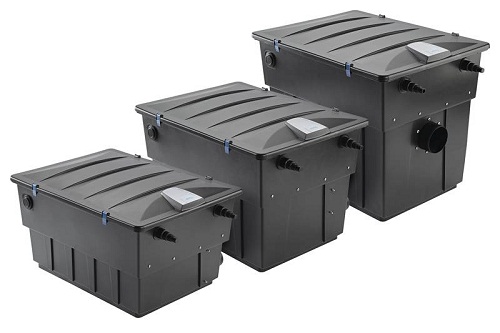

Product characteristics
Highly effective flow-through filter for ponds up to 140 m³
Incl. OASE Clear Water Guarantee
Cleaning of filter sponges directly in the filter, without removal
Sludge drain with slide valve for removing debris from the filter system
Different filter materials for optimal settlement of filter biology
Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
Optimally matched to OASE AquaMax Eco filter pumps
Direct connection possibility for Bitron C and Eco UVC clarifiers
Double-sealed motor for an extended service life

Warranty: 1 year

Specifications

Order no.: 46178
Dimensions(LxWxH): 788x590x645 mm
Rated voltage (primary, secondary): 230 V / 50 Hz , 12 V
Power consumption: 5 W
Cable length 12 V device: 2.10 (Power unit) + 5.00 m
Net weight: 30 kg
Number of filter foams, total: 16 ST
Number of blue filter foams: 4 ST
Number of red filter foams: 6 ST
Number of purple filter foams: 6 ST
Special filter granulate: 5 kg
Temperature display: No
Coarse debris extraction: 300 MIM
Connection inlet: 38 mm
Connections, outlet: DN 110
Connections, sludge discharge: DN 50
Min. flow rate: 8000 l/h
Max. flow rate: 12500 l/h
Suitable for ponds up to max.: 90 m3
Suitable for ponds with fish stock: 45 m3
Suitable for ponds with koi: 22,5 m3
Connection to: Bitron C 36 – 110 W

Pictures

Product Videos


Download Documents

Brochure: BioTec ScreenMatic² 90000

Hướng dẫn sử dụng: BioTec ScreenMatic² 90000
