Product characteristics

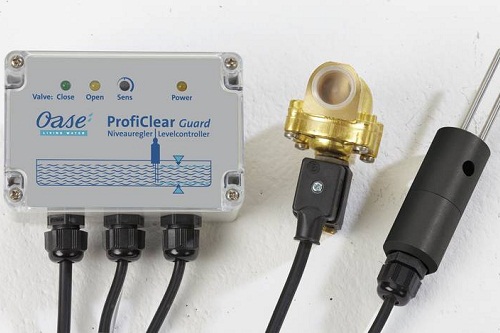

Servo controlled solenoid valve, 230V, brass
Measurement principle conductive (2 measure points)
Power consumption 3 W
Power cable length 2.00 m
Cable length sensor 20.00 m
Cable length valve 3.00 m
Switching differential 20 mm

Warranty: 1 year

Specifications

Order no.: 50951
Dimensions(LxWxH): 120x55x111 mm
Rated voltage: 230 V / 50/60 Hz
rated voltage – sensor: 12 V
Power consumption: 3 W
Net weight: 2,82 kg
Power cable length: 2 m
Cable length sensor: 20,00 m
Cable length of the valve: 3,00 m
Connection: 13 mm
Connection: 1/2″
Max. operating pressure: 18 bar
Switching differential: 25 mm

Photos

Download Documents

Brochure: ProfiClear Guard
