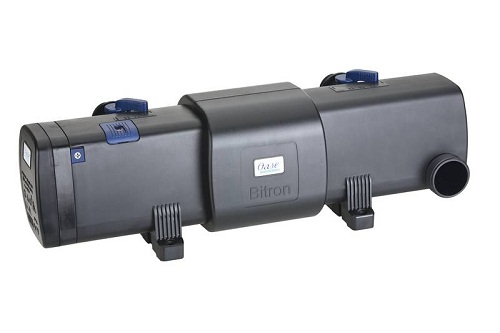

Bitron C 110 W

Order no.: 56902
Power consumption: 110 W

Category:

Product characteristics

  • Suitable for ponds up to 110 m³
  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen levels
  • Clever UVC function monitor, display for bulb change and water temperature
  • Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
  • Individual water flow adjustment for optimal adaptation to the connected filter pump
  • Integrated magnets protect the UVC technology against limescale deposits
  • Visual function check of the UVC bulb
  • 100%, VDE-certified safety; does not cause eye injuries

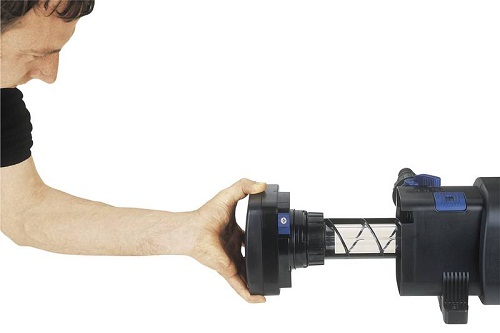

  • Quick release technology for easy bulb replacement
  • High-quality workmanship with impact resistant plastic housing
  • Incl. high quality UVC bulb

Specifications

Order no.: 56902
Dimensions(L x W x H): 730 x 215 x 200 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 110 W
Power cable length: 5 m
Net weight: 6,5 kg
UVC power: 110 W
Temperature display: No
Bypass control: manually
UVC operating hours meter: No
Number of inlets: 1 ST
Connection inlet: 19 / 25 / 32 / 38 / 50 mm
Connection inlet: 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Number of outlets: 2 ST
Connections, outlet: 25 / 32 / 38 mm
Connections, outlet: 1″, 1 1/4″, 1 1/2″
Max. operating pressure: 1 bar
Pump capacity, min.: 12000 l/h
Pump capacity, max.: 40000 l/h
Suitable for ponds up to max.: 110 m3
Suitable for ponds with fish stock: 55 m3
Suitable for ponds with koi: 27,5 m3
Connection to: ProfiClear, BioTec ScreenMatic² 140000, BioTec 30
Other: Opt. Function check

Pictures

Product Videos

Download Documents

Brochure: Bitron C 110 W
Hướng dẫn sử dụng: UVC Bitron C
