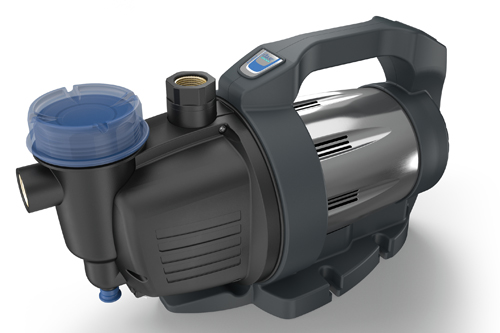

ProMax Garden Automatic 5000

Order no.: 43127
Flow rate Q max: 3m3/h

Product characteristics

Easy commissioning: Fast and funnel-free filling through the pre-filter. Any residue from the filling water remain in the filter
Easy to see – easy to access: On the rear of the handle, a pressure switch is attached on top with 3x coloured LEDs for clear and quick status display
Well-secured: Thanks to flow monitoring and thermal dry-run protection
Everything under control: The integrated electronics ensure reliable on-demand operation and clearly show the operating status
High-quality & efficient: Stainless steel motor cladding for improved heat dissipation
Flow monitoring: Ensures a long pump life and protects the pump if there is a leak
Holds the water: Integrated non-return valve for reliable standby operation and with practical valve opener for the trouble-free initial filling
Easy to open: Place a standard screwdriver in the slots and turn the filter cover
Drain screw: The metal drain screw ensures reliable opening and closing with a tool
For quiet operation: Rubber feet are integrated onto the supporting base
Practical: 4x slots for threaded fittings in the base allow variable mounting, e.g. on an existing installation carriage
Intelligent & economical: Through automatic supply with well water or rain water with 4700 l/h and 5 bar pressure
Quiet operation: High-volume and flow-optimised hydraulic unit of fibre-glass reinforced plastic

Warranty: 1 year

Specifications

Item number: 43127
Dimensions: 543mmL x 234mmW x 304mmH

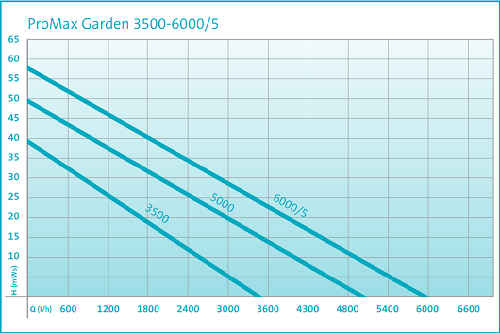

Flow rate Q max: 4700 l/h
Pressure max: 5,0 bar
Rated voltage: 230 V / 50 Hz
Power consumption: 1200W – 1,6 HP
Power cable length: 1,5m
Net weight: 13,90 Kg
Connection sunctions-side: 1″
Connection pressure-side: 1″
Protection class: IP X4

Pictures

Product Videos

Download Documents

Brochure: ProMax Garden Automatic 5000
