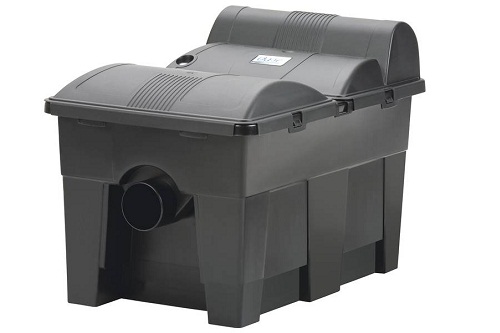

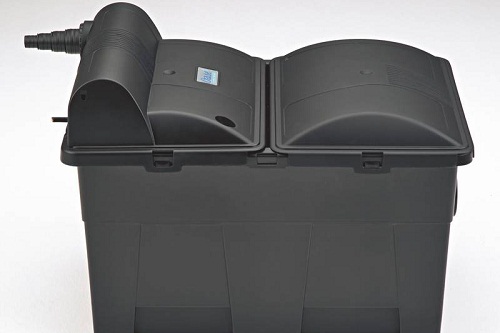

BioSmart UVC 16000

Order no.: 57377
Power consumption: 14 W

SKU: 57377 Category: Tag:

Product characteristics
Guaranteed clear water through the combination of mechanical/biological cleaning with effective UVC technology
Additional oxygen enrichment through special water channelling
Cleaning handles for convenient maintenance
Including displays for pollutant level and water temperature
Sludge drain for easy removal of coarse debris

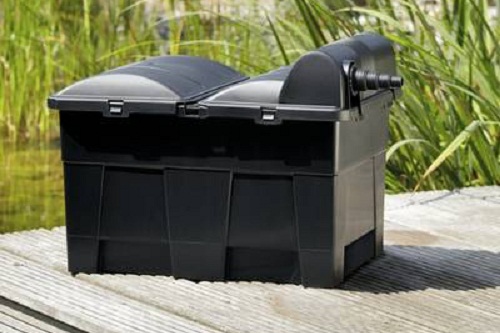

Easy to conceal; the filter housing can be recessed into the ground to ? of its height
Optimally matched to the OASE AquaMax filter and watercourse pumps

Warranty: 1 year

Specifications

Order no.: 57377
Dimensions(LxWxH): 380x560x410 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 14 W
Power cable length: 3 m
Net weight: 5,4 kg
UVC power: 11 W
Number of filter foams, total: 6 ST
Number of blue filter foams: 3 ST
Number of red filter foams: 3 ST
Temperature display: Yes
Connection inlet: 19 / 25 / 32 / 38 mm
Connection inlet: 3/4″, 1″, 1 1/4″, 1 1/2″
Connections, outlet: DN 75
Connections, sludge discharge: 38 mm
Connections, sludge discharge: 1 1/2″
Max. flow rate: 5500 l/h
Suitable for ponds up to max.: 16 m3
Suitable for ponds with fish stock: 8 m3
Suitable for ponds with koi: 4 m3



Pictures

Product Videos


Download Documents

Brochure: BioSmart UVC 16000
